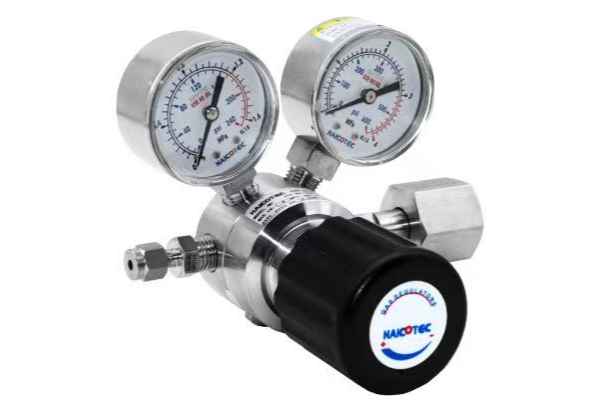

C11型減壓閥
C11 Series Pressure Reducing Valve
C11型高壓單級標準流量不銹鋼減壓閥，單級式金屬膜片調壓結構：適用于高純氣體、一般腐蝕性氣體，標準氣體等。
C11 Series High-Pressure Single-Stage Standard Flow Stainless Steel Pressure Reducing Valve, single-stage metal diaphragm pressure regulating structure: suitable for high-purity gases, general corrosive gases, standard gases, etc.
適用范圍：實驗室、氣體色譜儀器、石油化工、電廠設備、測試儀器設備
Application scope: laboratories, gas chromatography instruments, petrochemicals, power plant equipment, testing instrument equipment
技術參數：最大輸入壓力：3000psi
可控輸出壓力：0至15/24/35/60/90/150/240/250psi
工作溫度;-20至+70℃
閥體螺紋：NPT1/4”F
泄漏率：2*10-8atm cc/sec He
Technical parameters: Maximum input pressure: 3000 psi
Controllable output pressure: 0 to 15/24/35/60/90/150/240/250 psi
Operating temperature: -20 to +70℃
Valve body thread: NPT 1/4”F
Leakage rate: 2×10-8 atm cc/sec He
部件材質：閥體、提升閥針、提升閥座：SUS316L
提升閥密封墊：PTFE/PGTFE/PEEK
膜片：SUS316L/Hc-22
Component materials: Valve body, lift valve needle, lift valve seat: SUS316L
Lift valve seal gasket: PTFE/PGTFE/PEEK
Diaphragm: SUS316L/Hc-22
產品特點：波紋式無穿孔膜片降低產品泄漏率，提高調節壓力靈敏度
超純凈水清洗
進口采用不銹鋼金屬過濾網
采用精度1.6KL壓力表
Product features: Corrugated non-porous diaphragm reduces product leakage rate and improves pressure regulation sensitivity
Washed with ultra-pure water
Inlet adopts stainless steel metal filter screen
Equipped with 1.6KL precision pressure gauge
【參考】為產品改良而未提前通知變更的尺寸，請于我公司聯系了解
[Reference] For size changes due to product improvement without prior notice, please contact our company for details.
【注】1、使用壓力應該在壓力表全量程的60%以內
2、1MPA=10bar=9.87atm=145.03psig=10.2kg/cm2=7500mmHg
[Note] 1. The operating pressure should be within 60% of the full scale of the pressure gauge.
2. 1 MPA = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm2 = 7500 mmHg
