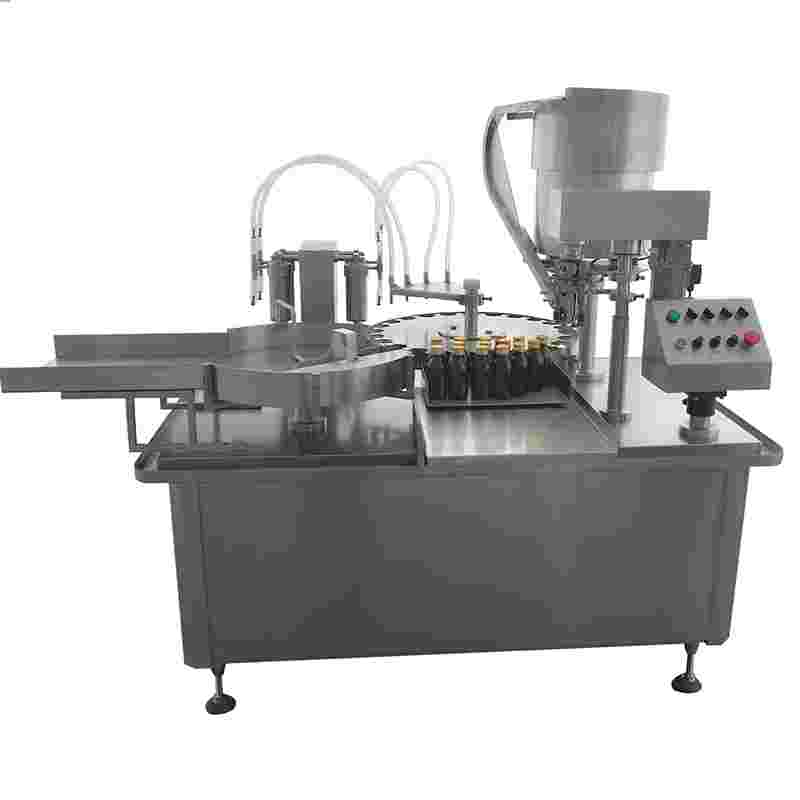

KGF4 Liquid Filling Capping Machine
1） Introduction:
The machine is the main equipment of liquid filling production line, to complete the filling and sealing action. The production process is short, no intermediate storage bottles, easy to produce arrangements, simple structure, practical, liquid manufacturers is the best supporting equipment.
2) The main technical parameters:
Production capacity: 1000~3000 bottles / hour
Applicable bottle: 3ml~100ml glass and plastic bottle
Accuracy: 0-2%
Number of filling: four
Power: 220v 50Hz
Maximum power: 1.5kw
3) Main device component configuration
| No. | Name | Type or Material | Supplier |
| 1 | PLC | DVP14SS11T2 | JAPAN Mitsubishi |
| 2 | touch screen | DOP-B05S100 | JAPAN Mitsubishi |
| 3 | piston ring (silicone rubber) | 53006000 # | Taiwan |
| 4 | stainless steel metering pump | (316L) | Beijing |
| 5 | cover stacker | 400 type (304 #) | Shanghai DINGHUA |
| 6 | other electrical components | Zhejiang CHINT | |
| 7 | screw conveyor system | components | Nantong Yuquan |
| 8 | equal divider | nylon | Nantong Yuquan |
| 9 | drive mechanism | components | Nantong Yuquan |
| 10 | rack, table | assembly (A3) | Nantong Yuquan |
| 11 | side panels, panel | components (304 #) | Nantong Yuquan |
5) the main parts material
Other parts that come into contact with the bottle: 304 # stainless steel
The stainless steel metering pump and filling head use SS316L.
