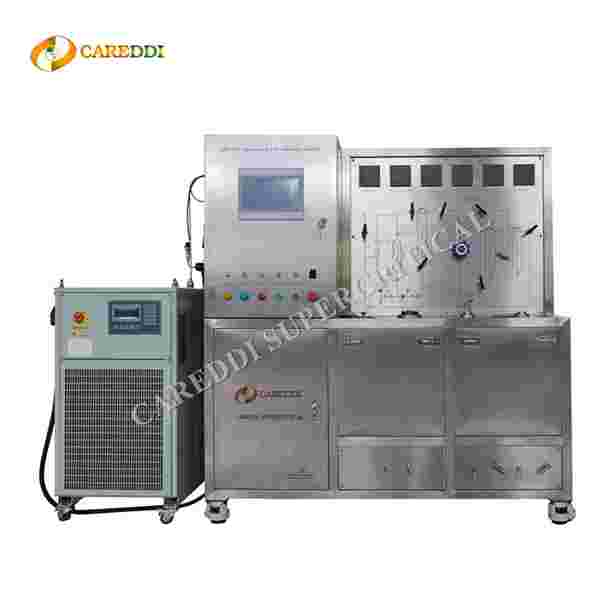

Main Technical Parameters of Supercritical Co2 extraction System 1Liter
| Sn. | Name | Specification | QTY |
| 1 | Extraction vessel | Volume: 1LDesign pressure: 50MPa Maximum work pressure: 45MPa,Design temperature: 85℃ Maximum work temperature: 80℃Material: Stainless steel 304Equipped with jacket water circling heating system, temperature adjustable. | 1 |
| 2 | Separation 1 | Volume: 0.5LDesign pressure: 20MPa Maximum work pressure: 18MPa,Design temperature: 85℃ Maximum work temperature: 80℃Material: Stainless steel 304Equipped with jacket water circling heating system, temperature adjustable. | 1 |
| 3 | Separation 2 | Volume: 0.4LDesign pressure: 20MPa Maximum work pressure: 18MPa,Design temperature: 85℃ Maximum work temperature: 80℃Material: Stainless steel 304Equipped with jacket water circling heating system, temperature adjustable. | 1 |
| 4 | cylinders | Material: Stainless steel 304 (SS316 optional if needed)Load of extraction raw materials | 2 |
| 5 | CO2 high pressure pump | Triple plunger pump, 50L/h (frequency adjustable)To deliver CO2 into the system and increase the pressure | 1 |
| 6 | Co-solvent pump | 4L/h, to pump co-solvent into system | 1 |
| 7 | Water pumps | To pump water in tank into vessel jacket and circulated | sets |
| 8 | chiller | Chilling gaseous CO2 into liquid CO2 and cool the main pump head | 1 |
| 9 | Heat exchange system | Material: 304 stainless steel, design pressure 50Mpa | 3 |
| 10 | Filter | Material: stainless steel 304 Volume: 0.5L Design pressure:20Mpa | 1 |
| 11 | mixer | Material: stainless steel 304 Volume: 0.5L Design pressure:50Mpa | 1 |
| 12 | CO2 Storage Tank | Material: Stainless steel 304 Volume: 4L, Maximum working pressure does not exceed 16MPa | 1 |
| 13 | CO2 Cylinder rack | Material: Stainless steel 304 , vertical or horizontal | 1 |
| 14 | Flow Meter | Flow range: 0-60L/h (Display instantaneous flow) | 1 |
| 15 | Temperature control system | Temperature control range: room temperature ~ 85℃ adjustableTemperature control accuracy: ±1℃ | |
| 16 | Safety protection system | Extraction vessel, separation vessels, CO2 high pressure pump, storage tank are equipped with safety valves to prevent system overpressure. | |
| 17 | Pipeline valves | High pressure pipelines and valves, process water valves and pipelines, check valves, back pressure valves | |
| 18 | Equipment bracket | Material: Stainless steel 304 | 1 |
| 19 | Data acquisition and control system | Touch screen, control extraction and separation temperatures, start and stop of CO2 high pressure pump and co-solvent pump, data storage and output. | 1 |
Careddi Technology CO., Ltd., a professional manufacturer of Supercritical Carbon Dioxide Extraction Machines located in Hai’an city, Jiangsu Province, China. Our whole plant covers an area of 30 acres and we are proud to say that we have achieved tremendous success in the Supercritical CO2 Extractor field during the past three decades.
Our machines are widely used for herb essential oils extraction and separation in pharmaceutical, food, cosmetic, and spice industries, among others. Careddi Supercritical CO2 Extraction Machines are the most advanced extraction method with a clean process, low temperature, and non-damaged ingredients inside the materials. Moreover, our machines have many advantages such as highly-integrated system with high capacity, easy installation and operation, precise pressure control, quick pressure increase, double safety protection, fast extraction speed, and 99% CO2 recovery rate.
What sets us apart from other brands is our strong technical team, which consists of more than 100 professional and skilled engineers who have been working with experts and scholars from famous universities and institutes in China for more than 35 years. We can produce a full series of Supercritical CO2 Extraction machines from lab scale for lab testing applications to large industry scale for commercial mass production applications.
At Careddi, we are dedicated to strict quality control and thoughtful customer service. We have obtained CE certificates, ISO 9001 certificate, ASME certificate, PED certificate, among others, which are useful in helping our customers establish GMP standard facilities. Our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
CAREDDI has been supplying clients in over 80 countries worldwide with high reputation machines, good services, and competitive prices for various kinds of material oil extraction, especially for hemp CBD oil, hops, seabuckthorn seeds oil, frankincense oil, astaxanthin, ganoderma spore oil, agarwood oil, sandalwood oil, curcuma oil, spices oil, ginger, decaffeination, kava, nutmeg, lavender, rosemary, Rice bran oil, olive residue cake oil, tea tree seed, protein powder, and more.
We are confident in our ability to provide excellent machines and services that will meet your expectations. We look forward to the opportunity to work with you and establish a great cooperation together.
